The Mk6 Electric Winch (above) is designed for free swimming observation class Remotely Operated Vehicles (ROVs). It is electrically powered with variable speed and direction control, via a simple and safe to operate handheld pendant. The winch is powered by a motor and gearbox direct drive to the drum.

Winches, LARS: electric and hydraulic

Hydro Products Asia supplies winches and A-frames for offshore use. Our winches are ideal for a range of uses including ROV launching/recovery operations, subsea ploughing, towed systems and underwater diving systems. Available with a range of accessories including lifting frame, sling and davit launch & recovery skid.

Our winch systems can be custom-designed for all applications, backed by comprehensive customer and technical support.

Typical applications, features and benefits include:

(LARS) Launch and Recovery System
Skid packages with armoured umbilical cables
ROVs Remotely Operated Vehicles
Subsea ploughs and excavation equipment
Diving and towed systems
Oceanographic instrumentation
Custom designs to suit various cable diameters
Low noise operation
Exchangeable cable drums
Compact systems
Electric and hydraulic

Crane Launch and Recovery System (LARS)

Hydro Products Asia provide Launch and Recovery Systems (LARS) that feature a combined umbilical winch and overboarding system on a base frame. Our LARS are designed specifically for deploying and recovering tethered powered objects, such as: towed arrays, ROVs or any other underwater vehicles.

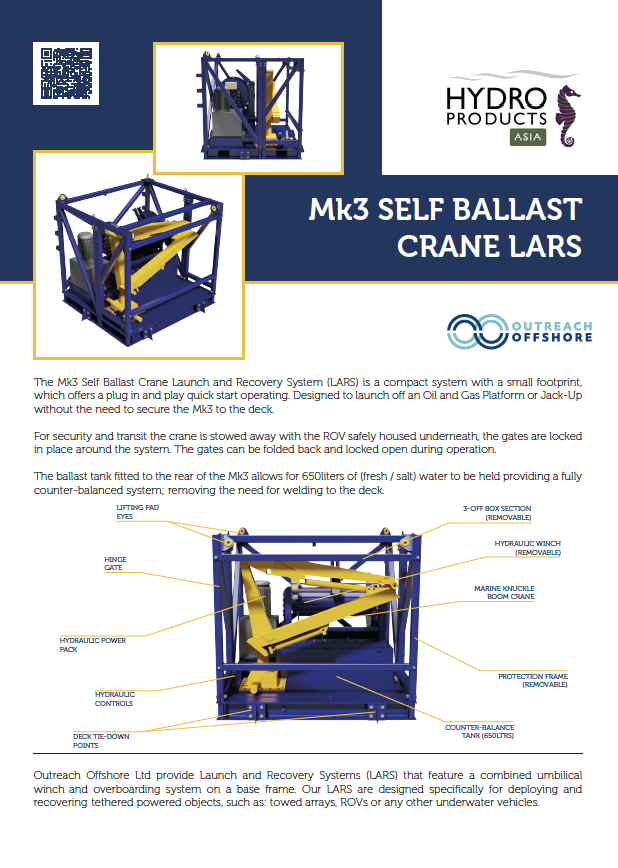

The Mk3 Self Ballast Crane Launch and Recovery System (LARS) is a compact system with a small footprint, which offers a plug in and play quick start operating. Designed to launch off an Oil and Gas Platform or Jack-Up without the need to secure the Mk3 to the deck.

For security and transit the crane is stowed away with the ROV safely housed underneath, the gates are locked in place around the system. The gates can be folded back and locked open during operation.

The ballast tank fitted to the rear of the Mk3 allows for 650liters of (fresh / salt) water to be held providing a fully counter-balanced system; removing the need for welding to the deck.

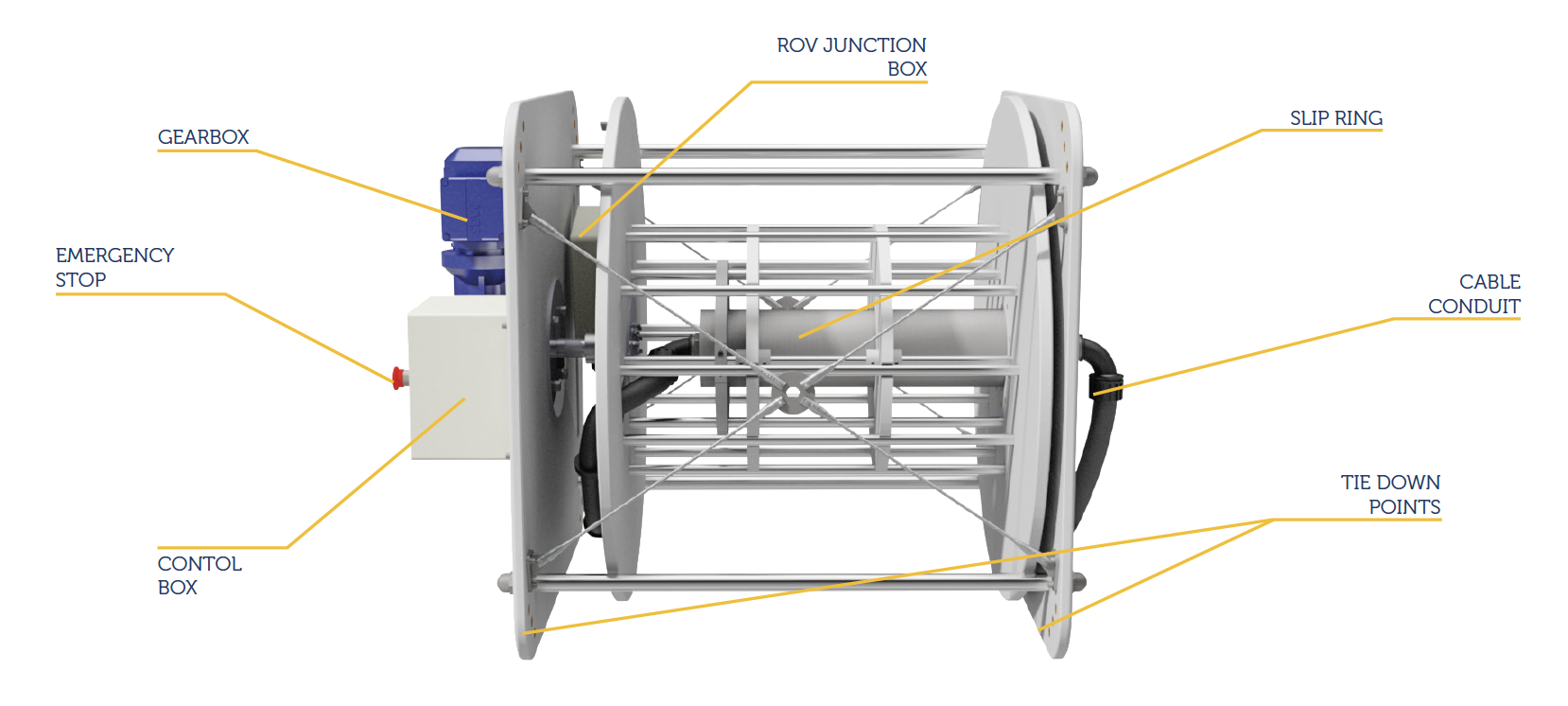

Electric Tether Winch

The Mk8 Electric Tether Winch is designed to store and deploy soft tethers for a variety of free swimming Remotely Operated Vehicles (ROVs).

Fitted with a variable speed electric drive the winch is controlled using a simple to operate handheld pendant.

The very small footprint of the winch makes it ideal for use on small vessels of opportunity and can be rapidly deployed thanks to the built in “plug and play” setup.

Self Ballast Crane Launch and Recovery System (LARS)

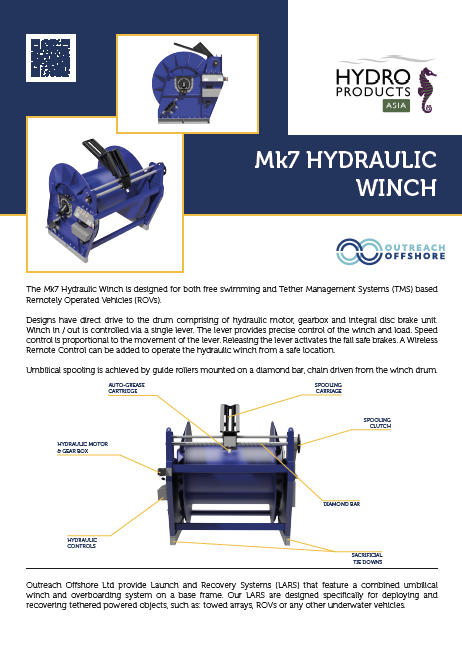

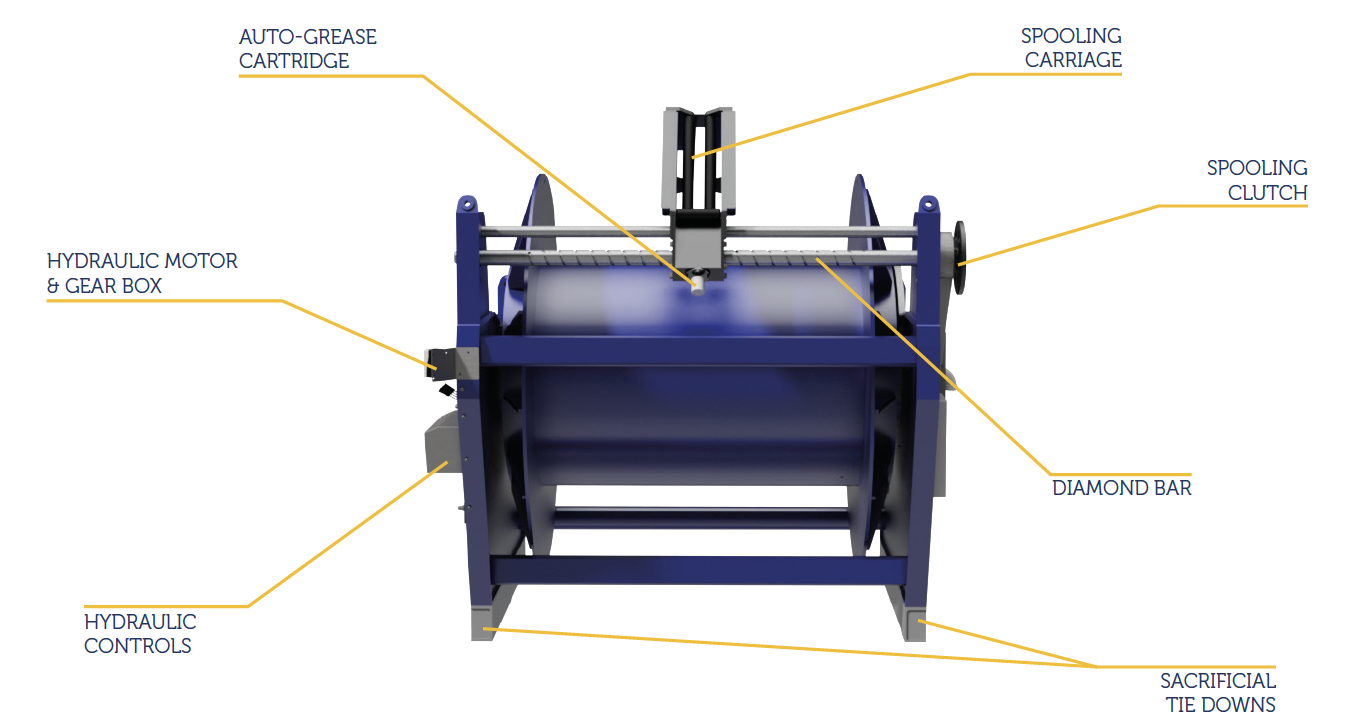

Hydraulic Winch

Electric Tether Winch
